一、Rectifier的简介 整流管，是有两个电极的装置，只允许电流由单一方向流过，许多的使用是应用其整流的功能。可分为:普通整流管、快恢复整流管、超快速恢复整流管、肖特基管和桥式整流器。 二、整流管的选用技巧 1.根据电路电压选择合适的lfsm和Vrm; 2. Vf 小比大好; 3.根据电路需要选择TRR和封装。 |
| Part Number |
Vr MAX(V)
|
If (AV)
|
Ifsm(A)
|
Vf(V)
|
Ir(Ta=25℃)
|
Package
|

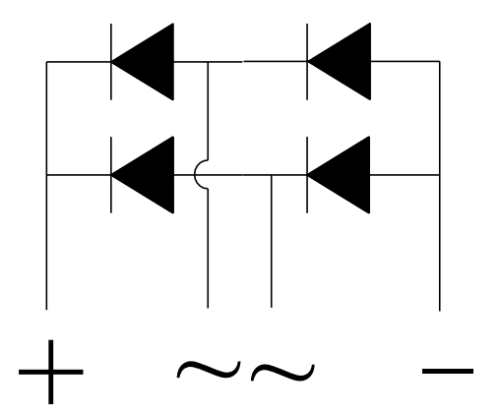

Inner Diagram | Data sheet |
|---|---|---|---|---|---|---|---|---|
| VMB8S | 800 | 0.8 | 30 | 1 | 5μA | IBS |
 |
|
| VMB6S | 600 | 0.8 | 30 | 1 | 5μA | IBS |
 |
|
| VMB4S | 400 | 0.8 | 30 | 1 | 5μA | IBS |
 |
|
| VMB0510S | 1000 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| VMB058S | 800 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| VMB056S | 600 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| VMB054S | 400 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| IB0510S | 1000 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| IB058S | 800 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| IB056S | 600 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| IB054S | 400 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| IB0310S | 1000 | 0.3 | 16 | 0.92 | 5μA | IBS |
 |
|
| IB038S | 800 | 0.3 | 16 | 0.92 | 5μA | IBS |
 |
|
| IB036S | 600 | 0.3 | 16 | 0.92 | 5μA | IBS |
 |
|
| IB034S | 400 | 0.3 | 16 | 0.92 | 5μA | IBS |
 |
|
| DF151S | 50 | 1.5 | 50 | 1.1 | 10μA | DF-S |
 |
|
| LB4S | 400 | 0.8 | 30 | 1 | 5μA | ABS |
 |
|
| MB4S | 400 | 0.8 | 35 | 1 | 5μA | MBS |
 |
|
| MB05F | 50 | 0.8 | 30 | 1.05 | 10μA | MBF |
 |
|
| VMB4S | 400 | 0.8 | 30 | 1 | 5μA | IBS |
 |
|
| VMB054S | 400 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| IB054S | 400 | 0.5 | 20 | 0.95 | 5μA | IBS |
 |
|
| IB034S | 400 | 0.3 | 16 | 0.92 | 5μA | IBS |
 |
|
| SS10U45 | 45 | 10 | 150 | 0.45 | 300uA | TO-277 |
 |
|
| MBR20100CT | 100 | 20 | 150 | 0.95 | 0.1mA | TO-220AB |
 |
|
| MBR1020FCT | 20 | 10 | 120 | 0.7 | 0.1mA | ITO-220AB |
|
|
| MBR1030FCT | 30 | 10 | 120 | 0.7 | 0.1mA | ITO-220AB |
|
|
| MBR1040FCT | 40 | 10 | 120 | 0.7 | 0.1mA | ITO-220AB |
|
|
| MBR1045FCT | 45 | 10 | 120 | 0.7 | 0.1mA | ITO-220AB |
|
|
| MBR1050FCT | 50 | 10 | 120 | 0.75 | 0.1mA | ITO-220AB |
|
